Industrial Water Treatment Auxiliary Equipment and System Components

Complete water treatment facilities depend on robust auxiliary equipment to maintain continuous operation, protect primary membrane trains, and handle chemical conditioning. This page provides plant engineers and procurement managers with technical specifications, sizing metrics, and system layouts for auxiliary water treatment machinery, including automated chemical dosing systems, mechanical bar screens, media filters, and on-site disinfection generators. Built for heavy-duty plant environments, these units integrate directly into existing industrial and municipal water lines to ensure stable, long-term process execution.

50g/h Sodium Hypochlorite Generator For On-Site Chlorine ...
The 50 g/h Sodium Hypochlorite Generator produces fresh disinfectant on-site using salt, water, and electricity, eliminating the need to transport or store commercial sodium...
Small Waste Incinerator For Medical Animal And General Waste
The LK-I-50 Incinerator is a compact diesel-fired waste incinerator designed for hospitals, veterinary clinics, laboratories, farms, and other facilities that require safe on-site waste treatment....
Waste Incinerator
Waste Incinerator (including Domestic Waste Incinerator, Rural Waste Incinerator, Animal Incinerator, Industrial Waste Incinerator)
This waste incinerator adopts advanced incineration...

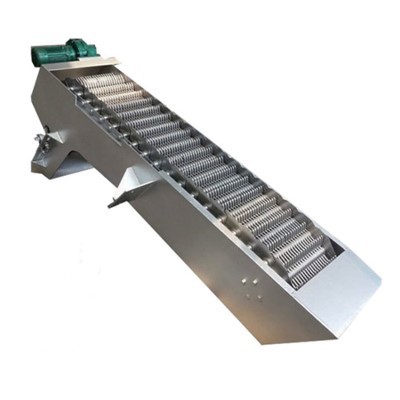

Mechanical Bar Screen
A Mechanical Screen is a core solid-liquid separation device at the front end of water treatment. It automatically intercepts and removes floating objects, suspended solids and large impurities in...

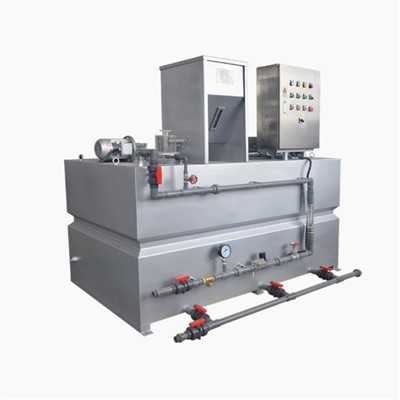

Automatic Dosing System Machine
• Total power: 1.47KW to 4.77KW (varies by model)
• Applications: Wastewater treatment, power plant furnace dosing, boiler chemical injection, water treatment, tap water pretreatment,...
Mechanical Filter Machine
• Power: 0.5KW-7.5KW
• Application: It suits hotels, garment shops, machinery repair shops, food & beverage factories, farms, homes, retail stores, construction works, energy & mining...
Activated Carbon Filter
• This filter is a multi-media water treatment device with automatic backwash function.
• It uses quartz sand and activated carbon as filter media. It removes suspended solids, organic...
Sand Filter Machine
Sand Filter (including Long-Life Anti-Wear Type, Zero-Waste Type, Circular-Economy Type)
This quartz sand filter is a high-efficiency water treatment equipment. It removes suspended...
Bag Filter Machine
• It is a high-efficiency filtration device.
• It removes over 99% of impurities like solid particles, suspensions and gases.
• It uses 304/316L stainless steel for strong corrosion...

Solutions

Precise Chemical Reagent Dosing

Integrated skid systems delivering exact volumes of coagulants, flocculants, scale inhibitors, or pH adjusters into high-pressure water lines.

Headworks Solid-Liquid Separation

Automatic mechanical screens and drum filters intercepting large debris and suspended matter to protect downstream pumps and valves.

On-Site Disinfectant Generation

Electrochemical generation units producing fresh sodium hypochlorite on demand, removing the safety hazards of storing commercial chlorine chemicals.

Media Filtration Pretreatment

Automatic backwashing quartz sand and activated carbon filters removing turbidity, suspended solids, and free chlorine prior to reverse osmosis.

Product Category

Series	Equipment Type	Primary Function	Power and Capacity Range	Core Material Construction
LK-DS Series	Automatic Dosing System	Chemical reagent preparation and injection	1.47 kW to 4.77 kW	PE tanks, 304 and 316L stainless steel mixers and pumps
LK-MS Series	Mechanical Bar Screen	Intercepting large floating solids in raw water	0.5 kW to 3.0 kW	304 or 316L stainless steel framework
LK-CL Series	Sodium Hypochlorite Generator	On-site salt-to-chlorine disinfection production	50 grams per hour to 5000 grams per hour	Titanium alloy electrodes, PVC piping
LK-AF Series	Quartz Sand and Carbon Filter	Particulate removal and organic adsorption	Flow: 5 to 50 cubic meters per hour	Carbon steel epoxy-lined or FRP vessels

System Configuration

Storage and Mixing Module

Polyethylene or stainless steel chemical mixing tanks equipped with low-speed mechanical agitators and liquid level sensors.
Motive and Injection Module

Dual-head reciprocating or diaphragm metering pumps configured with pressure relief valves, calibration columns, and pulsation dampeners.
Solid Separation Module

Motor-driven rakes, screen chains, or backwash distribution headers designed for automated debris removal cycles.
Electrical Control Panel

NEMA-rated or IP54 control enclosures housing motor starters, terminal blocks, and PLC interface terminals for remote start and stop operations.

Treatment Process Table

Stage	Process Name	Operating Principle	Equipment Used	Target Parameter Control
1	Coarse Screening	Mechanical interception	Automatic bar screen and rotary drum	Removal of objects over 5 millimeters
2	Deep Media Filtration	Adsorption and physical trapping	Quartz sand and activated carbon filters	Turbidity reduction below 1 NTU
3	Chemical Conditioning	Proportional fluid injection	Diaphragm dosing pumps and PE tanks	Maintained pH stability or scaling prevention
4	Electrolytic Disinfection	Direct current salt conversion	Titanium electrode generator cells	Active chlorine concentration control

Applications

Municipal Wastewater Headworks

Initial debris removal protecting municipal sewage pumps and clarifiers.

Power Plant Boiler Houses

High-precision hydrazine, phosphate, or oxygen scavenger chemical injection.

Industrial Desalination Pretreatment

Multi-media filtration safeguarding seawater reverse osmosis membranes from particulate fouling.

Potable Water Disinfection

Continuous safe chlorine dosing for municipal drinking water networks.

Technical Specifications

Category	Parameter	Specification
Flow Performance	Metering Pump Flow Rate	Adjustable from 2–1,000 L/h at backpressures up to 1.0 MPa
Electrical	Operating Power Supply	380 V or 415 V, 3-phase, 50/60 Hz, or 220 V single-phase
Wetted Materials	Material Options	PVC, PVDF, 304 stainless steel, or 316L stainless steel
Enclosure	Protection Rating	IP55, suitable for outdoor or humid pump-house environments
Control Integration	Communication / Feedback	4–20 mA analog loop or Modbus RTU for SCADA feedback loops

Selection Guide

Chemical Viscosity and Aggressiveness

Select wetted materials, such as PVDF or 316L stainless steel, that match the chemical properties of your specific dosing reagents.

Peak Hydraulic Throughput

Ensure auxiliary filters and screening equipment match the maximum design flow rate of the main water treatment train without excessive pressure drop.

Dosing Control Logic

Determine whether manual stroke adjustment, 4 to 20 milliamp flow-paced control, or residual-based closed-loop automatic control is required.

Available Floor Space

Verify skid dimensions and maintenance clearance zones for filter media replacement or pump servicing.

Manufacturing and Quality Control

01.

Weld Integrity

Structural frames and stainless steel vessels welded using certified TIG procedures with full penetration and surface passivation.

02.

Hydrostatic Testing

Pressure vessels and chemical piping manifolds hydro-tested at 1.5 times working pressure prior to crating.

03.

Electrical Bench Testing

Complete functional verification of control cabinets, motor overload relays, and dry-contact alarm outputs.

04.

Material Documentation

Mill test certificates supplied for structural steel profiles, pressure vessels, and wetted metallic components.

Customized Engineering

Skid-mounted pre-assembled dosing stations combining dual pumps and dual tanks on a single common base.

Specialized corrosion-resistant coatings, such as heavy-duty marine epoxy, for high-salinity coastal environments.

Custom electrical control logic designed to match specific PLC architectures like Siemens, Allen-Bradley, or Schneider.

Our Certificate

FAQ

Q: What data is required to size an automatic chemical dosing system?

A: You must provide the required chemical injection volume per hour, system operating pressure, chemical concentration, and whether continuous proportional control via flow meter feedback is needed.

Q: How are mechanical screens protected against jamming from heavy debris?

A: Screens feature automated overload protection sensors with torque limiters that trigger an automatic reverse cycle or shut down the motor to prevent structural damage when heavy objects jam the rake.

Q: What maintenance is required for sodium hypochlorite generators?

A: Routine maintenance involves periodic acid washing of the titanium electrode cells to remove calcium and magnesium scale deposits that accumulate during the electrolysis process.

Q: Can your dosing pumps handle viscous or corrosive polymers?

A: Yes. Depending on the chemical type, we configure systems with specialized diaphragm or progressive cavity pumps featuring PVDF or 316L liquid ends to prevent seal degradation.

Q: What documentation is included with auxiliary equipment shipments?

A: Each unit ships with an operation manual, electrical wiring diagrams, P and ID drawings, component data sheets, and a factory inspection checklist.

Q: What is the standard lead time for auxiliary water treatment machinery?

A: Standard catalog items ship within 4 to 6 weeks. Custom-engineered multi-pump dosing skids or special metallurgy units typically require 6 to 8 weeks.
