Industrial Water Purification Equipment and Skid-Mounted Systems

Industrial facilities require consistent, high-purity water to protect equipment, maintain chemical balance, and comply with manufacturing standards. This page provides plant engineers and buyers with technical specifications, process flows, and system configurations for custom-engineered industrial water purification equipment. Built for continuous operation, our systems use proven separation technologies—including Reverse Osmosis (RO), Electrodeionization (EDI), and Ultrafiltration (UF)—matched to specific raw water conditions and required output standards.

6000 L/H Containerized RO Water Treatment System
6000 L/H containerized RO water treatment system with pretreatment, RO, UV sterilization, mineralization and intelligent control. Customized for overseas projects.
Compact 500L/H Commercial RO System
Compact 500L/H commercial RO system with multi-stage filtration, LEO pump, Huitong RO membrane, and flexible configurations for reliable water purification.
Six-Canister Multi-filtration 1000L Reverse Osmosis System
Looking for a reliable reverse osmosis water treatment system? Here's one built for long-term industrial operation.
Industrial RO Water Treatment System
Inside a Modern Industrial RO Water Treatment System: Components, Monitoring and Performance

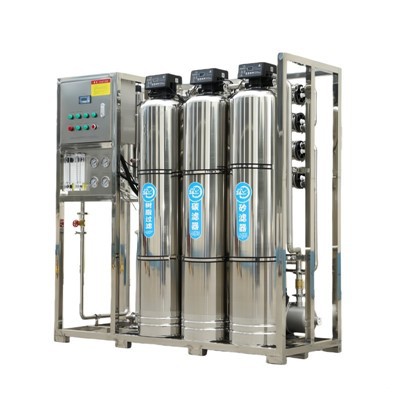

Reverse Osmosis Systems
• It uses advanced reverse osmosis technology.
• It removes heavy metals, bacteria and other contaminants effectively.
• It provides clean, safe and pure direct drinking water from...
Industrial Reverse Osmosis Systems
The reverse osmosis water purification equipment is a device that uses reverse osmosis technology to deeply purify water. It can effectively remove impurities, heavy metals, bacteria and other...
Commercial Reverse Osmosis System
• Power: 380V/3.5kw (for 2000LPH model)
• Applications: This equipment suits industrial water purification, commercial bottled water production, drinking water supply, irrigation water...
Industrial Ultrafiltration System
Ultrafiltration (UF) is a pressure-driven membrane separation technology. Its membrane pore size is usually 1–100 nm (0.001–0.1 μm). It has a molecular weight cut-off of about 1,000–100,000 Da. It...
Seawater Multi-Media Filter
• This is a core pretreatment device for seawater treatment projects.
• It removes harmful impurities from raw seawater to protect your follow-up equipment.
• It uses layered filter...

Solutions

Boiler Feed Water Treatment

High-pressure RO and softeners designed to prevent mineral scaling and turbine corrosion in steam generation plants.

Process Water Loop Systems

Multi-stage purification skids delivering continuous high-purity water for chemical manufacturing and assembly lines.

Food and Beverage Water

Hygienic stainless steel distribution loops ensuring microbiological control and mineral balance compliance.

Electronics Rinse Water

Multi-pass RO paired with dual-bed EDI and sub-micron filtration to achieve 18.2 Megaohm-cm resistivity.

Product Category

Series	Core Technology	Primary Application	Typical Output Capacity	Target Quality
LK-RO Series	Single or Double Pass RO	General industrial process, boiler feed	5 to 100 cubic meters per hour	Less than 10 microSiemens per cm
LK-EDI Series	RO plus Continuous EDI	Electronics, pharmaceuticals, lab use	2 to 50 cubic meters per hour	Greater than 15 Megaohm-cm
LK-UF Series	Hollow Fiber Ultrafiltration	Heavy suspended solids removal, RO pre-treatment	10 to 200 cubic meters per hour	SDI less than 3
LK-MF Series	Multi-Media and Activated Carbon	Sediment removal, chlorine reduction	5 to 150 cubic meters per hour	Turbidity less than 1 NTU

System Configuration

Pre-Treatment Module: Multi-media filters, activated carbon filters, and automatic softeners or dosing units to protect downstream membranes.

Core Filtration Module: High-pressure housings with spiral-wound membranes and multi-stage centrifugal pumps.

Polishing Module: Continuous Electrodeionization or mixed-bed polishers for ionic reduction without chemical shutdown.

Control Panel: PLC integrated with touchscreens, inline meters, pressure transmitters, and flow meters.

Piping and Frame: Carbon steel structural skids with stainless steel sanitary process piping, orbital-welded and passivated.

Skid-Mounted Two-Pass RO Water Treatment System

Treatment Process

Stage	Process Name	Operating Principle	Equipment Used	Target Removal
1	Coarse Filtration	Physical straining	Disc filters and strainers	Particles over 100 micron
2	Media Filtration	Adsorption and reduction	Anthracite and activated carbon	Iron, chlorine, odors
3	Chemical Dosing	Threshold inhibition	Micro-dosing pumps and PE tanks	Scale prevention
4	Membrane Separation	Pressure-driven filtration	RO membranes and FRP vessels	Dissolved salts (99 percent), bacteria
5	Electro-Polishing	Ion migration via electric field	EDI modules and ion exchange resins	Residual ions (sodium, chloride, silica)

Applications

Power Generation

Boiler make-up water to eliminate tube scaling and blowdown losses.

Automotive Manufacturing

Paint-shop rinse water and electrocoat supply.

Pharmaceutical Production

Purified water meeting pharmacopeia guidelines.

Chemical Processing

Reactor feed water and solvent dilution loops.

Technical Specifications

Category	Parameter	Specification
Feed Water	Supply Pressure	0.2–0.4 MPa
Electrical	Operating Voltage	380 V or 415 V, 3-phase, 50/60 Hz
Membrane	Membrane Element Brand	Dow FilmTec, Hydranautics, or Toray
Piping	Product-Side Piping	Sanitary-grade 316L stainless steel
	Pre-Treatment Piping	Schedule 80 UPVC
Weld Quality	Weld Inspection	100% endoscopic weld inspection
	Documentation	Passivation certificate provided
Automation	Communication / Integration	Modbus, Ethernet, or PROFINET; SCADA connectivity ready

Selection Guide

To specify the correct purification skid, evaluate these parameters from your water analysis report:

Total Dissolved Solids (TDS)

Determines if single-pass or double-pass RO is required.

Silt Density Index (SDI)

If SDI is over 3, ultrafiltration pre-treatment is needed to prevent membrane fouling.

Total Hardness

Determines softener sizing and chemical dosing capacity.

Required Flow Rate

Ensures pump size and membrane area match operational demands.

Manufacturing and Quality Control

Welding Certification

Process piping welded by technicians certified to ASME Section IX standards using TIG methods with argon purge.

Pressure Testing

Hydrostatic pressure testing performed on all pressure vessels and piping skids at 1.5 times maximum operating pressure before dispatch.

Factory Testing

Each skid undergoes a 4-hour dry and wet functional test to verify pumps, valves, electrical interlocks, and alarms.

Six-Canister Multi-filtration 1000L Reverse Osmosis System

Traceability

Material test reports provided for all metal components, pressure vessels, and pumps.

Customized Engineering

Standard skids can be modified to fit restricted plant footprints or specific water profiles. Options include:

Duplex or triplex pump configurations for 100 percent redundancy.

Hot water sanitization loops for microbiological control.

Containerized mobile treatment plants for outdoor deployment.

Our Certificate

FAQ

Q: What raw water parameters are needed for system sizing?

A: A complete water analysis report including TDS, pH, hardness, silica, iron, manganese, free chlorine, and SDI is required to run membrane projection software and size pre-treatment accurately.

Q: What is the typical recovery rate for an industrial RO system?

A: Standard single-pass industrial RO systems operate at 75 to 80 percent recovery. Systems with concentrate recycling can exceed 85 percent recovery, depending on raw water conditions.

Q: How is membrane fouling managed during operation?

A: Systems feature automated low-pressure flushing at startup and shutdown. Clean-In-Place skids with integrated chemical tanks are also included for periodic chemical cleaning.

Q: What standards do your control panels meet?

A: Control panels are built to UL or IEC standards using industrial components housed in NEMA or IP-rated enclosures.

Q: What documentation is supplied with the equipment?

A: Each shipment includes drawings, electrical schematics, component manuals, material certificates, hydro-test reports, PLC backup, and recommended spare parts lists.

Q: What is the standard lead time for a custom skid?

A: Standard catalog configurations ship in 6 to 8 weeks. Custom multi-stage skids with specialized metallurgy require 10 to 14 weeks, including factory testing and documentation.
